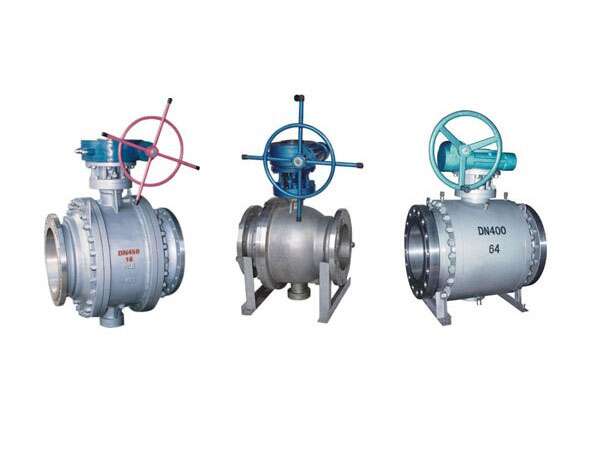

Cast steel Trunnion ball valve

Design Basis: API 6D/ BS 5351(ISO 17292)/ ASME B16.34/ API 608...
Face-to-Face Dimension: ASME B16.10...
Flanged End: ASME B16.5
Butt-Welding End: ASME B16.25
Socket Welding End:ASME B16.11
Wall Thickness: ASME B16.34
Firesafe: API607, API 6FA
Inspection and Test: API 6D/ API 598/ BS 6755...

Cast steel Trunnion ball valve

Product Range

Size: 2" - 30" (DN50 - DN750)

Class: 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB (PN1.6 - PN40)

Body Material: A216 WCB/ WCC, A352 LCB/ LCC, A351 CF8/ CF3/ CF8M/ CF3M, A890 4A/ 5A...

Trim Material: A105+ENP, 13CR, SS304/ SS316, F304/ F316, F51...

Seat & Seals: PTFE, R-PTFE, NYLON, DEVLON, PEEK...or Metal Sealing

Operation: Lever/ Wrench, Gear, Pneumatic/ Electic Actuator...





Product Details:


1.Blow-out proof stem

For the purpose of preventing the stem from flying off resulting in abnormal rising of the inner pressure of valve,shoulder is fixed at the lower part of the stem.In addition,in order to prevent leakage resulting from burnout of packing set of the stem in a fire,thrust bearing is set at the contact position of the shoulder at lower part of the stem and valve body.Thus an inverse seal seat is formed which will prevent leakage and avoid accident.

2.Key lock

Locks can be used to lock the manual valve when it is fully open or closed so as to prevent non-working personnel from pulling the handle which may result in misoperation of valve.It can also avoid opening or closing of valve resulting from the shock from pipelines or unpredictable factors that may cause an accident.For working pipelines such as combustible and explosive oil,gas and chemical medium,or for field piping site,the locking mechanism is especially useful.

3.Anti-fire safe design

When the trunnion ball valve be used normally,its sealed by seat and ball surface,seat retainer sealed by O-ring and body,this is soft sealed and reliable sealing.When the seat and O-ring are burnt,the seat retainer and body will be sealed by expanded graphite.Thus act anti-fire safe purpose.

4.Anti-static device

In order to prevent friction among ball,stem and PTFE that generates static electricity which may light the combustibles and explosives that cause an accident,in this ball valve,static-conduction spring is set between the stem and the ball,the stem and the body.Thus static electricity is conducted to ground and system safety is secured.

5.Free leakage of body Sealed construction

The connective position of valve body and bonnet is double sealed by gasket and O-ring,on this base,such factors as fire,high temperature,shock and uneven opening or closing of the torque all can  t induce external leakage.

6. Double block&bleed(DBB)

When ball is full open or close position,the transmitter substance in center cavity of body can be released by drainage and emptying devices.In addition,the over loaded pressure in the center cavity of valve can be released to low pressure end by self relief seat.

7.Emergency sealing

Compound injection holes are designed and compound injection valves are installed at locations of stem/cap and body support of side valve.When sealing of stem or seat is damaged to induce leakage,the compound can be used to do the second time sealing.A concealed check valve is installed in side of each compound injection valve to prevent compound from out flowing due to the action of transmitter substance.The top of the compound injection valve is the connector for fast connection with compound injection gun.

8.Automatic body cavity relief

When the body pressure going up un-normally as the unstable factor,the trunnion ball valve downstream seat will be pushed by unnormal pressure,and the release the un-normally pressure automatically,it doesn't damage to the sealing of upstream seat.

9.Various driving types

The top pad of valve designed according to ISO 5211,which is convenient for connection and exchange of various drivers.The common driving types are manual,electrical,pneumatic and pneumatic/hydraulic.
